About Anti-Collision Device for Multiple Tower Crane Operation

Enquire for Best Offer!

Anti-Collision Device (ACD) is an advanced safety system designed to prevent collisions between multiple tower cranes operating within the same site. It continuously monitors crane positions, jib movements, trolley radius, hook height, and slewing angles to detect potential collision risks in real time.

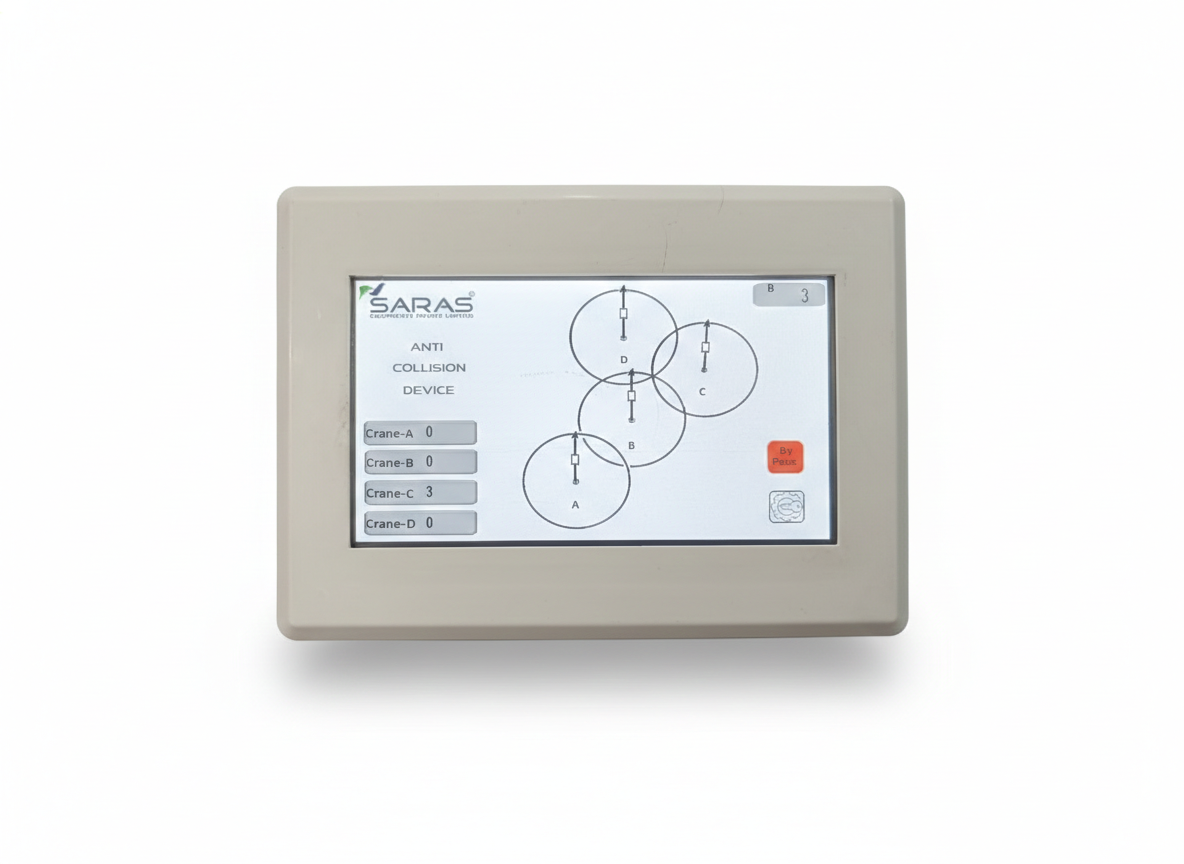

Equipped with an intuitive touch-screen display, the system provides a clear graphical view of all connected cranes, overlap zones, and safe working areas. When a risk is detected, the ACD issues audible and visual alarms and can be configured to activate safety cut-offs, ensuring timely corrective action by the operator.

Ideal for high-density construction sites, the Anti-Collision Device significantly enhances operational safety, reduces downtime, and helps comply with international crane safety standards. Its robust design, accurate sensors, and user-friendly interface make it a reliable solution for modern multi-crane projects.

Specifications – Anti-Collision Device for Multiple Tower Crane Operation

• Application: Multiple tower crane safety and collision prevention
• Number of Cranes Supported: Up to 8 cranes (expandable on request)
• Display Type: Color TFT touch-screen display
• Display Size: 7" / 10" (model dependent)
• Interface: Graphical real-time crane position and overlap visualization
• Monitoring Parameters:
• Slewing angle
• Jib length and working radius
• Trolley position
• Hook height
• Crane position and orientation
• Collision Detection: Crane-to-crane, Crane-to-zone (restricted areas), Crane-to-structure (optional)
• Alarm System: Visual alarms on display and Audible buzzer alarms
• Safety Output: Pre-alarm and main alarm, Relay outputs for hoist, trolley, and slewing cut-off (optional)
• Communication: CAN / RS485 / Wireless (site dependent)
• Power Supply: 12V / 24V DC
• Data Logging: Event and alarm history storage
• Accuracy: High-precision angle and position sensing
• Operating Temperature: -20°C to +60°C
• Enclosure: Industrial-grade, dust and vibration resistant
• Compliance: Conforms to international crane safety standards
• Mounting: Crane cabin / control panel mounting
