About Display 140 Ton Crane

Enquire for Best Offer!

The BD 140-ton Railway Crane is deployed for critical tasks such as handling derailed wagons, coaches, and heavy railway components. To ensure safe and precise lifting in such demanding conditions, our Safe Load Indicator provides continuous monitoring of load, angle, boom radius, and operating conditions.

Saras Equipments Private Limited is a trusted name in the field of crane safety systems, committed to delivering innovative solutions that enhance safety, reliability, and performance. Among our specialized products, the Crane Safe Load Indicator (SLI) for BD 140-ton Railway Cranes stands out as a robust safety system designed for heavy-duty railway lifting operations.

Specification

• Application: BD 140-ton Breakdown Railway Crane
• Type: Microprocessor-based electronic Safe Load Indicator

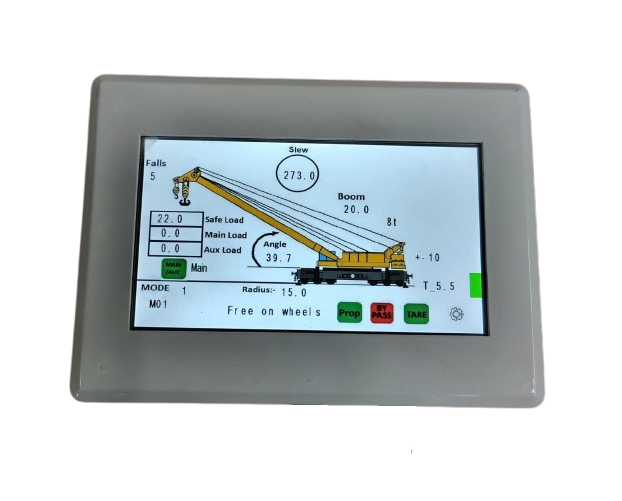

• Display: High-brightness display screen with real-time load parameters
• Power Supply: 24V DC / 110V AC (customizable)

  Monitoring Parameters
• Load Measurement: Up to 140 tons
• Boom Angle: 0° to 85°
• Radius Measurement: Automatic, based on boom angle and extension
• Safe Load Range: Configurable as per crane load chart

  Alarms & Safety
• Overload Alarm: Audio-visual indication at 90% & 100% capacity
• Safe Working Limit Indicator

  Environmental
• Operating Temperature: -20°C to +55°C
• Enclosure: Weatherproof, IP65-rated for outdoor use

• Integration: Compatible with anemometers & anti-collision systems
• Calibration: Pre-configured as per BD 140T Railway Crane load chart

  By preventing overloading and improving operator awareness, the SLI ensures safer, smoother, and more efficient railway crane operations.
