About Load Cell knuckle boom

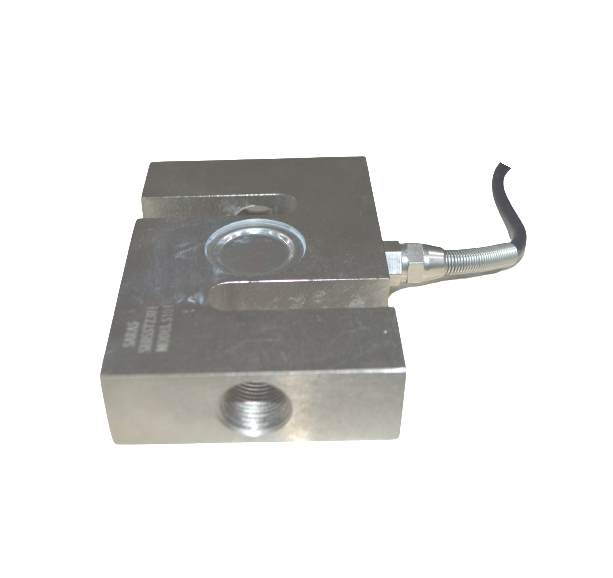

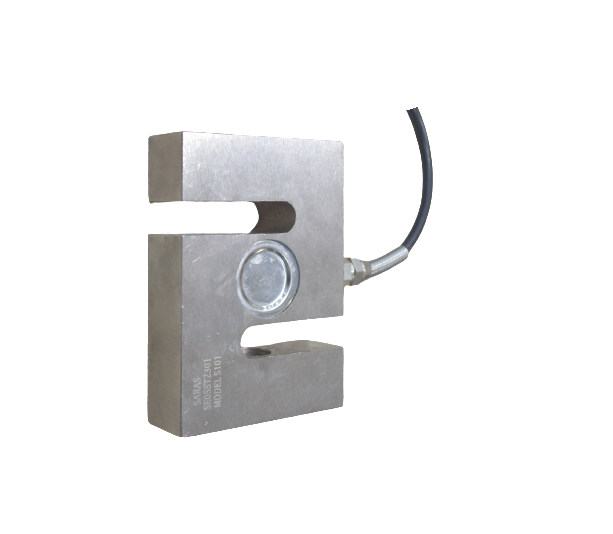

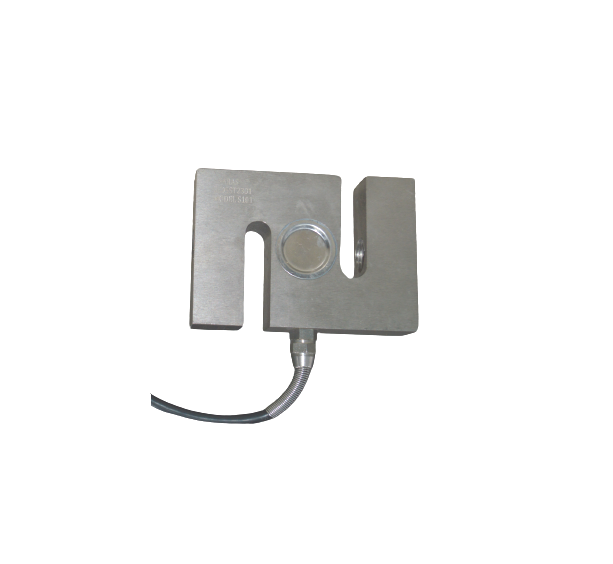

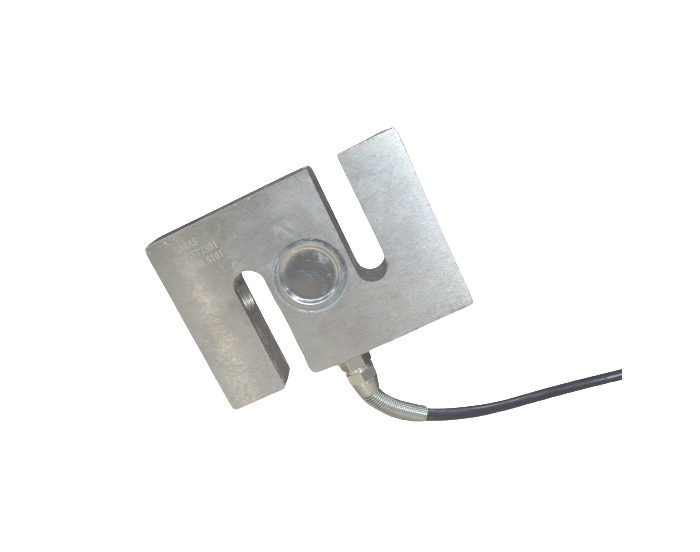

S-Type Load Cell is a highly accurate and durable force-measurement device designed for both tension and compression applications. Its distinctive S-shaped construction allows easy installation and reliable performance, making it suitable for a wide range of industrial weighing and load-monitoring systems.

The S-Type Load Cell offers excellent resistance to corrosion, vibration, and harsh environmental conditions. It delivers consistent and precise output, ensuring dependable operation in demanding industrial environments.

S-Type Load Cells are widely used in crane and hoist systems, batching plants, material testing machines, tank and hopper weighing, conveyor scales, and industrial automation applications. With high accuracy, strong overload capacity, and long service life, this load cell is an ideal choice for critical load-measurement requirements.

Product Details / Technical Specifications

• Accuracy Class: C2 & C3
• Rated Output: 2.0 ± 0.004 mV/V
• Comprehensive Error (% F.S): ±0.03 & ±0.02
• Creep (% F.S / 30 min): ±0.024 & ±0.016
• Zero Balance (% F.S): ±1.0
• Input Resistance: 350 ± 5 Ω
• Output Resistance: 350 ± 3 Ω
• Insulation Resistance: ≥ 5000 MΩ (100 VDC)
• Temperature Effect on Span (% F.S / 10°C): ±0.017 & ±0.011
• Temperature Effect on Zero (% F.S / 10°C): ±0.023 & ±0.015
• Compensated Temperature Range: -10°C to +40°C
• Operating Temperature Range: -20°C to +55°C
• Excitation Voltage: 9 – 12 V (DC)
• Safe Overload: 150% of Full Scale
• Ultimate Overload: 200% of Full Scale
• Ingress Protection: IP66
• Rated Load Capacity: 100 kg to 5 Ton.0
• Brand: SARAS
