Tension Meter for Crane

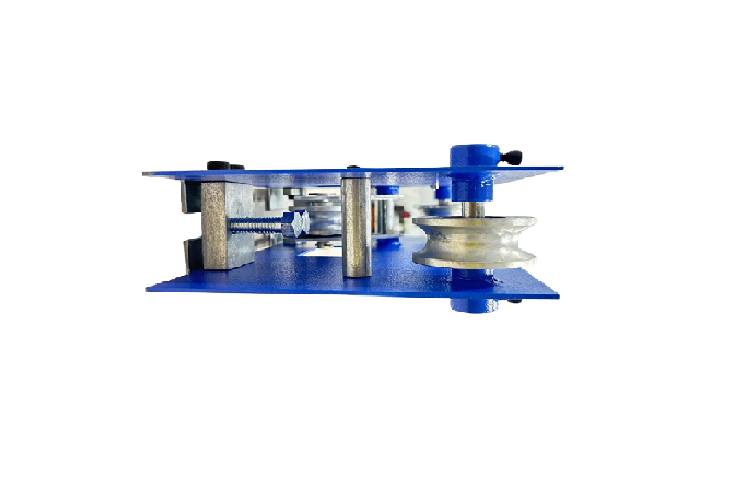

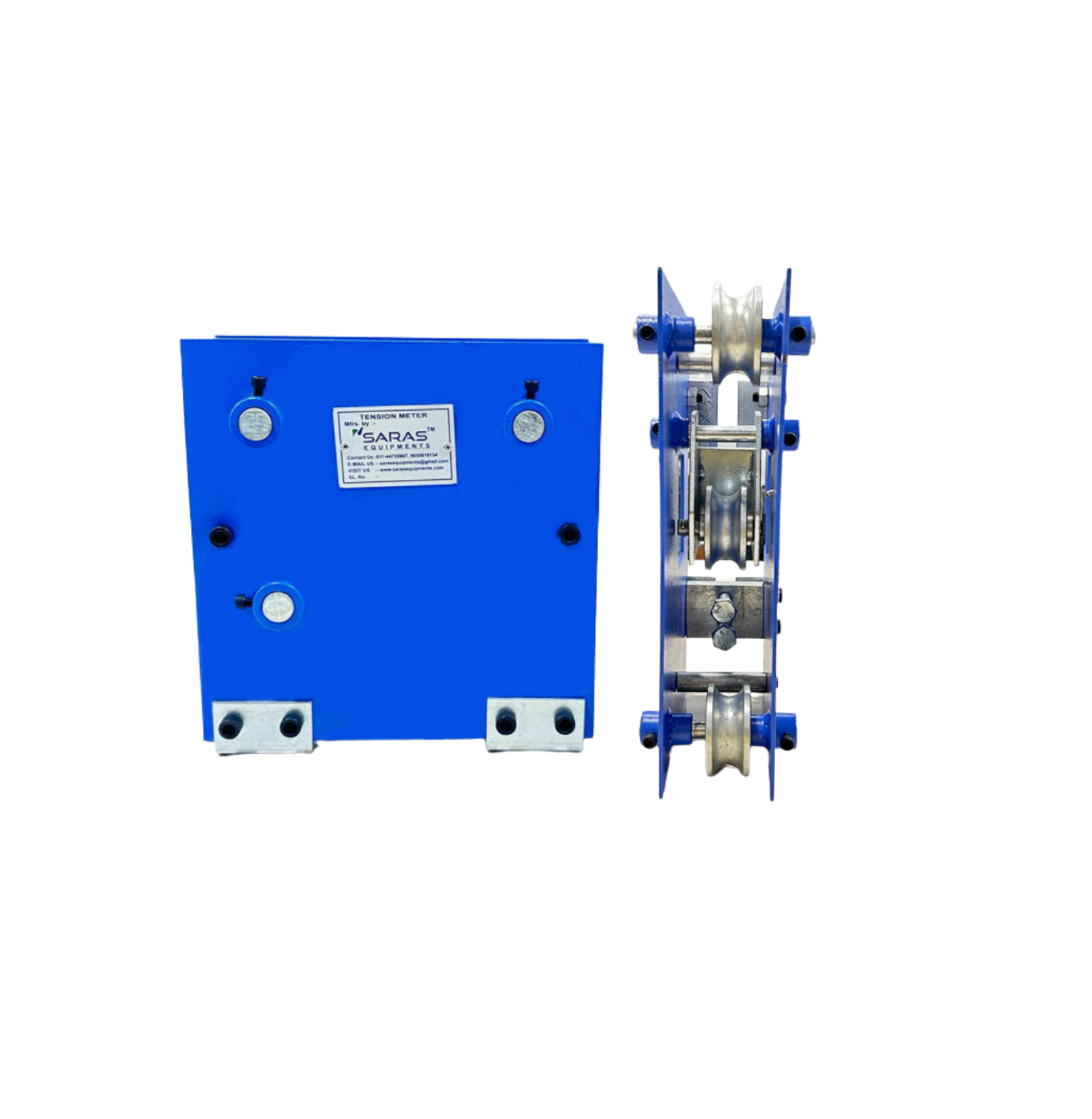

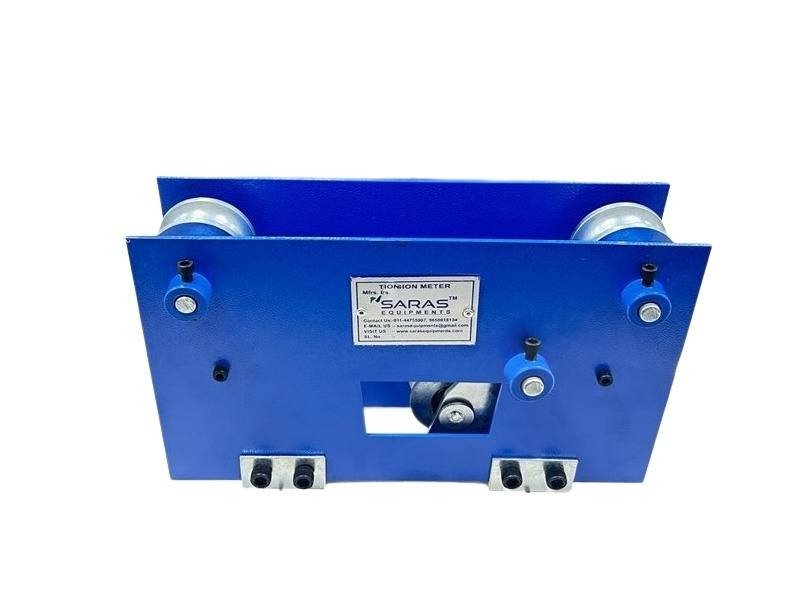

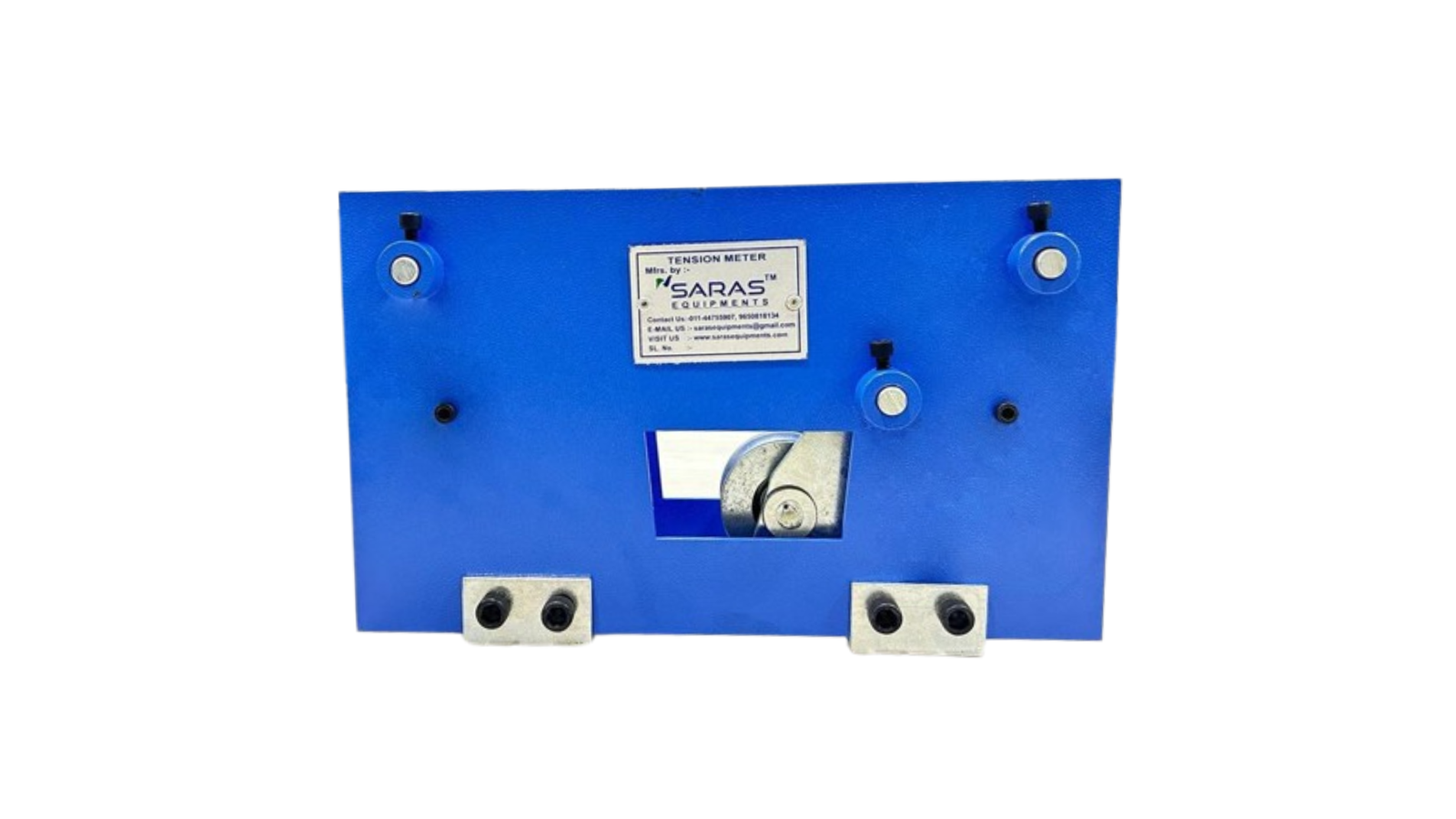

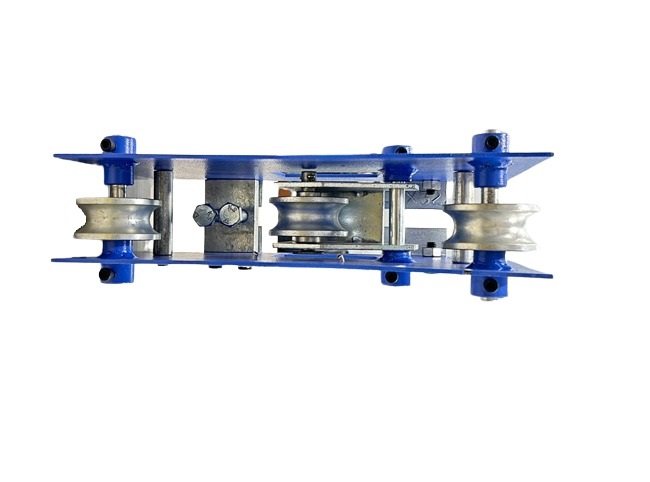

Tension Meter for Crane is a Device used to Measure Tension in Crane rope. Tension Meter commonly use a 3 roller system where the Rope Travels through the Rollers Causing Deflection in the Center Roller that is Connected to the Load Cell and Digital Indicator.
| Material of Construction: | MS-31. |
| Bearings: | 6 Nos. |
| Mounting: | Directly on boom or flexible assembly |
| Rope Diameter : | 8mm to 45mm |
| Maximum Capacity: | As required |
| Linearity: | +-2% of full scale |
| Operating Temp : | -10 °C to 60°C |
| No of pulley: | 03 |
| IP standard: | IP 67 |
| Life: | 5 Years |
| Usage: | Crane Rope, Running Rope |
