About Wireless Anemometer For Crane

Enquire for Best Offer!

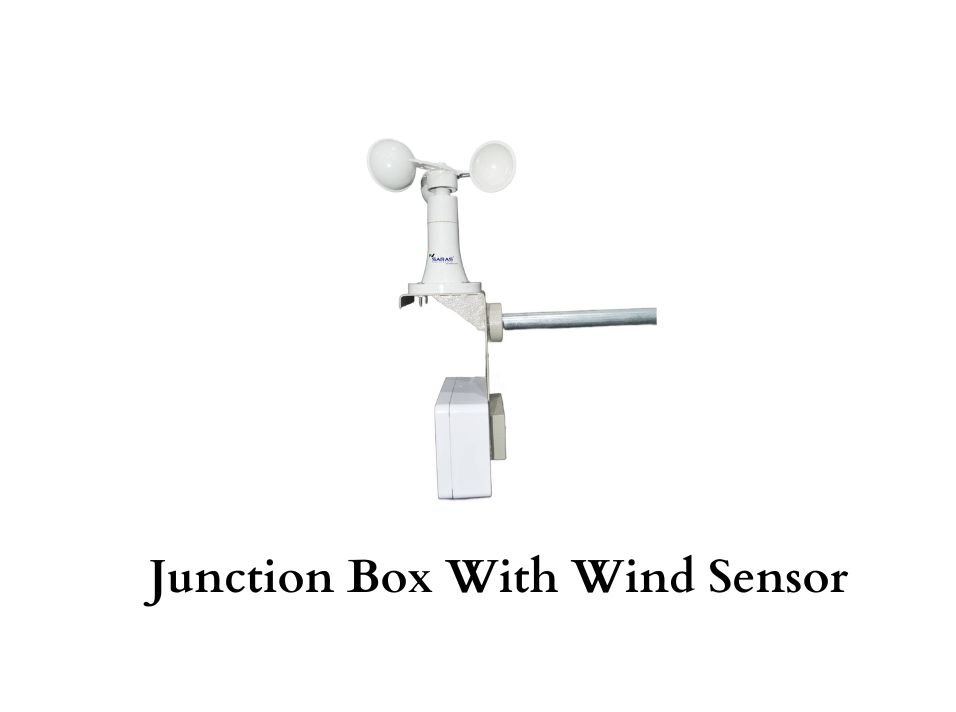

Wireless Anemometer for Crane / Wind Speed Sensor is mechanical rotate sensor, digital circuits capable of strong RFI & EMI resistance and automatic temperature compensation are installed inside the sensor, it outputs voltage and current signals by electromagnetic induction, and specially designed for Tower Crane the value and horizontal wind speed are linear relation. Sensor external parts all are made of alloy material and finish by surface powder coating, featured with water proof, corrosion resisting. Inside and turning position have sealing rings with nice sealing function, stop water, salt fog and dust getting in. SARAS-A03S wind speed sensor is build-in electronic automatic heating system, when temperature falls to under 0°C, system will automatic heating, melting ice to prevent external turning parts freeze.


Provided Parameters

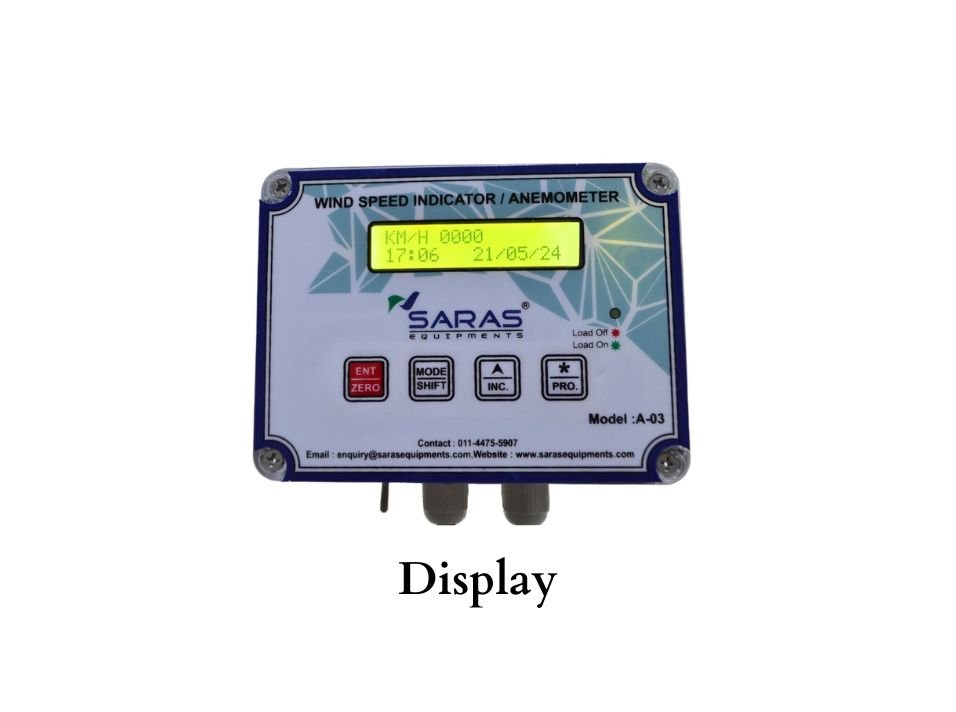

  • LED (8X2)
  • Time and Date
  • Temperature
  • Humidity
  • Velocity of Air
  • Over Speed Cut off with Alarm


  • Excellent resistance against impact, overload, shock and erosion
  • Small and exquisite, easy to take, easy to install
  • ABS material, reasonable structure design and nice outlook quality
  • Other industrial automation about wind speed and direction testing and control
  • Anti-wind load can reach 70m/s
  • Low wind start
  • Surge protection design
  • Kilometer per hour
  • Meter per second
  • Real time clock


Model A03S
Power supply: (12V/24V) DC and 220AC
Testing range:  0.5m/s~50m/s
Start wind speed:    ≤0.5m/s
Accuracy:  ±0.5m/s (<5m/s) (±3%FS (≥5m/s)
Working Environment Temperature:                   Temperature: -25 C~+80°
Limit wind speed Max: 60m/s 30min
Environmental Protection:   IP65
Relay Cut Off: Yes

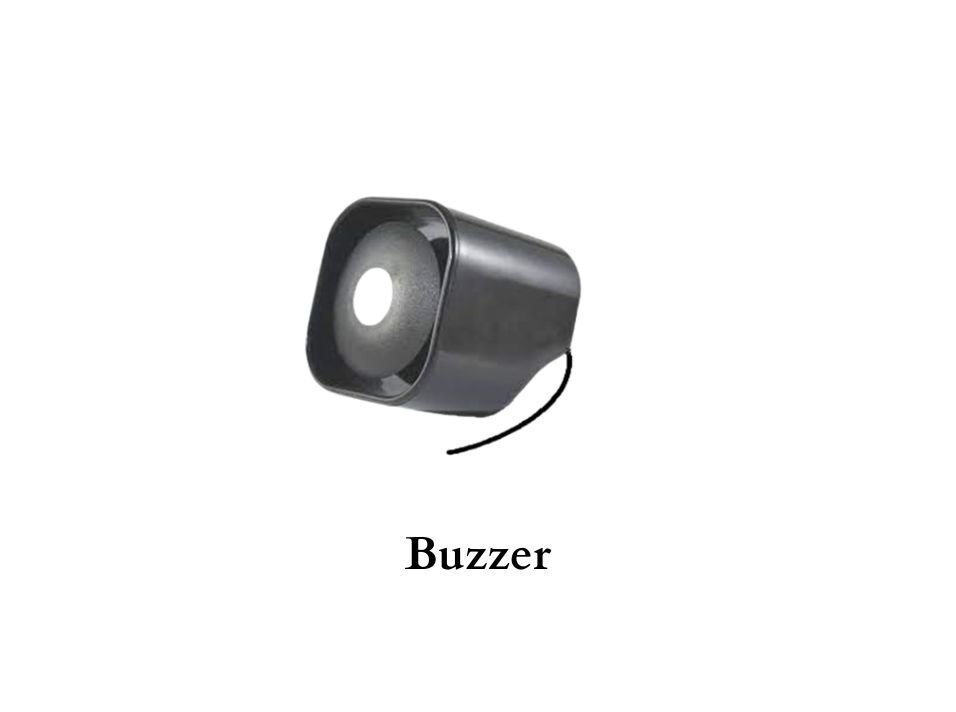

Over Speed Buzzer:  Yes
Warranty: Brand Warranty
Batteries:  Yes
Fan Box Dimensions: (L*H*W) MM 195*62*90 MM
Wireless Range: Upto 100 Mtr.*
Display Box Dimensions: (L*H*W) MM 133*95*55mm
Colour As per Image uploaded: It may vary 5-10%
